Bussmann-170M系列方體快速熔斷器



170M — Square Body size 000 and 00, DIN 43653  690 Vac (IEC), 700 Vac/dc (UL), 10 to 400 A

170M — Square Body size 1* to 3, DIN 43653  690 Vac (IEC), 700 Vac (UL), 40 to 2000 A

170M — Square Body size 00, DIN 43653 1000 Vac (IEC and UL), 20 to 315 A

170M — Square Body size 1* to 3, DIN 43653 1000 Vac (IEC and UL), 50 to 1400 A

170M — Square Body size 1* to 3, DIN 43653 1250 Vac (IEC), 1300 Vac (UL), 50 to 1400 A

170M — Square Body size 00 to 3, DIN 43620, fullrange (gR)690 Vac (IEC), 10 to 800 A

170M — Square Body size 000 to 3, DIN 43620,dual indicator fuses  690 Vac (IEC), 700 Vac (UL), 10 to 1600 A

170M — Square Body size 00, DIN 43620  1000 Vac (IEC and UL), 20 to 225 A

170M — Square Body size 1* to 3, French style 690 Vac (IEC), 700 Vac (UL), 40 to 1600 A

170M — Square Body size 1* to 3, US style 1000 Vac (IEC), 50 to 1400 A

170M — Square Body size 1* to 3, US style  1250 Vac (IEC), 1300 Vac (UL), 50 to 1400 A

170M — Square Body size 00, flush-end contact 690 Vac, 25 to 400 A

170M — Square Body size 1* to 3, flush-end contact 690 Vac (IEC), 700 Vac (UL), 40 to 2000 A

170M — Square Body size 1* to 3, flush-end contact 1000 Vac (IEC and UL), 50 to 1400 A

170M — Square Body size 1* to 3, flush-end contact 1250 Vac (IEC), 1300 Vac (UL), 50 to 1400 A

170M — Square Body size 4, flush-end contact  690 Vac (IEC), 700 Vac (UL), 1000 to 4000 A

170M — Square Body size 4, flush-end contact  1000 Vac (IEC), 1000 to 3000 A

170M — Square Body size 4, flush-end contact  1250 Vac (IEC), 800 to 2500 A

170M — IGBT size 000 and 230 750 Vdc (IEC), 800 Vdc (UL), 25 to 630 A

170M — IGBT size 000 and 230  1000 Vdc (IEC and UL), 25 to 500 A

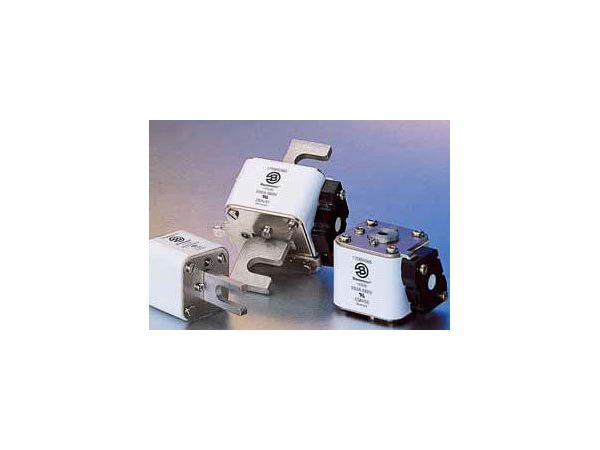

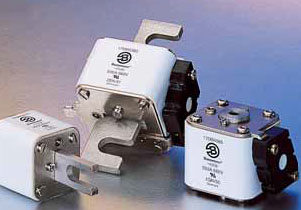

Square body DIN 43653 bolted tags high speed fuses, for the
protection of DC common bus, DC drives, power converters/
rectifiers and reduced rated voltage starters. Available with and
without visual indicator, and Type T indicator for a microswitch.







170M — size 000 and 00 DIN 43653  Flush-end contact
