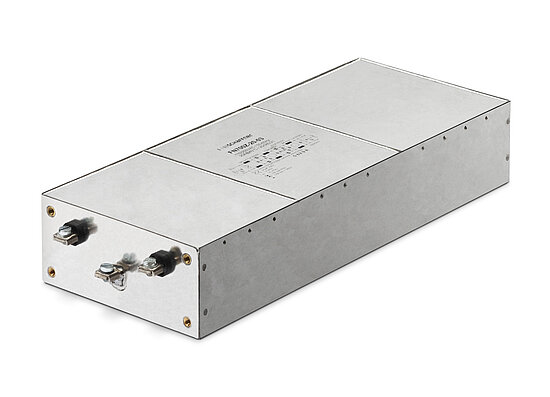

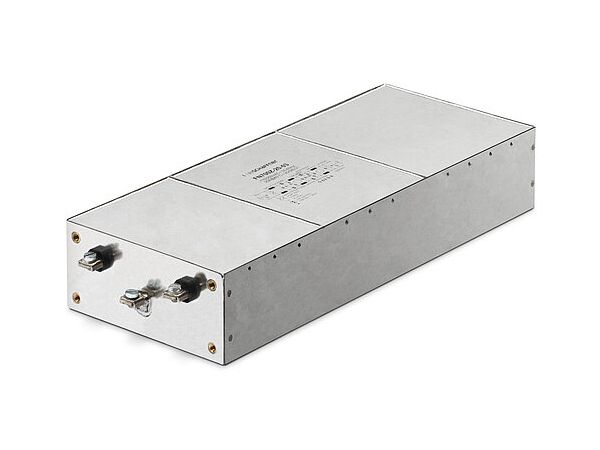

Very High Performance Single-Phase Filters FN700Z

Three-stage EMC/EMI Filter

• Rated currents from 6 to 20 A

• IEC inlet for 6 and 10 A versions

• Up to 3 GHz attenuation

• High surge voltage protection

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Operating frequency

DC to 400 Hz

Rated currents

6 to 20 A @ 40°C max.

High potential test voltage

P –> PE 420 VAC for 2 sec

P –> N 420 VAC for 2 sec

Temperature range (operation and storage)

-25°C to +85°C (25/85/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
