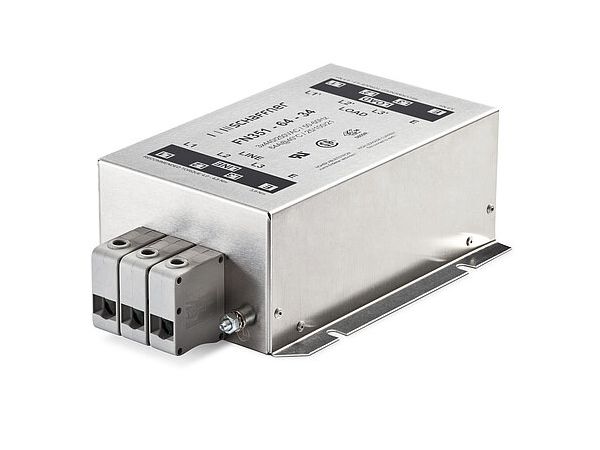

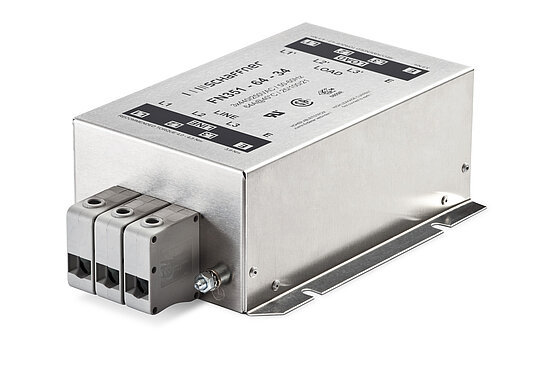

3-Phase Filters FN351H

General Purpose EMC Filter

• EMC solution for industrial inverters and motor drives

• Rated currents from 8 to 280 A

• Voltage level up to 520 V

• High differential and common-mode attenuation

Maximum continuous operating voltage

3x 520/300 VAC

Operating frequency

DC to 60 Hz

Protection category

IP 20

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Rated currents

8 to 280 A @ 40°C

High potential test voltage

P –> P 2250 VDC for 2 sec

P –> E 2750 VDC for 2 sec
