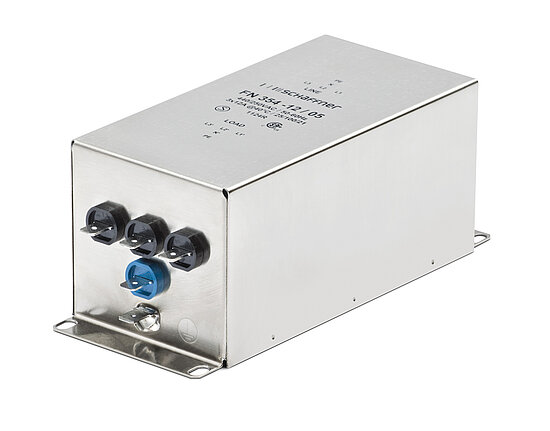

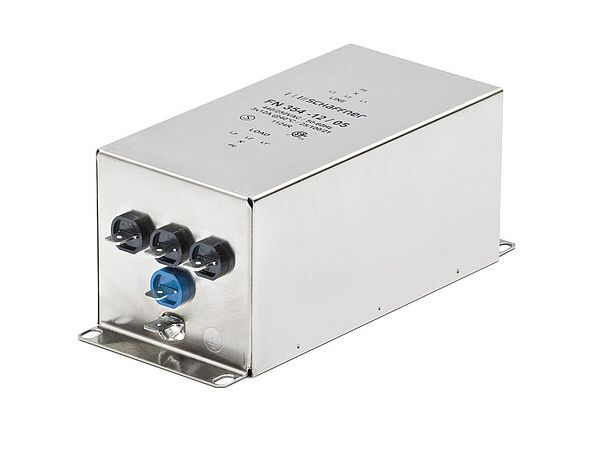

3-Phase Filters with Neutral FN354

Compact Three-phase and Neutral Line Filter for High Frequency Attenuation

• Compact four-wire filter for applications with limited space

• High attenuation performance up to 300 MHz

• Equally suitable for star and delta power networks

Maximum continuous operating voltage

3x 440/250 VAC

Operating frequency

DC to 60 Hz

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Rated currents

4 to 25 A @ 40°C max

High potential test voltage

P/N –> E 2000 VAC for 2 sec

P –> P 1900 VDC for 2 sec

P -> N 1100 VDC for 2 sec

Protection category

IP 20 (version with -47 connections)

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)
