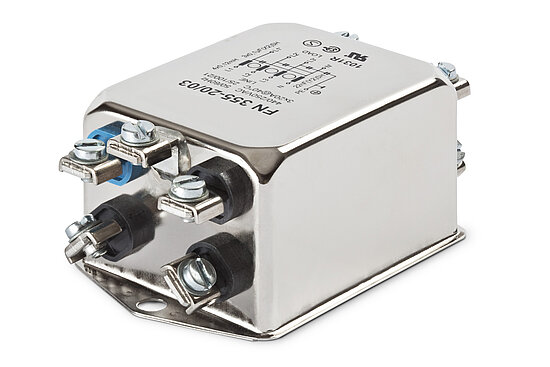

3-Phase Filters with Neutral FN355

Ultra-compact Low Leakage current EMC/EMI Filter

• Ultra-compact four-wire filter for applications lacking space

• Exceptional low operating leakage current

• Equally suitable for star and delta power networks

Maximum continuous operating voltage

3x 440/250 VAC

Operating frequency

DC to 400 Hz

Rated currents

3 to 20 A

High potential test voltage

P/N –> E 2000 VAC for 2 sec

P –> P 1350 VDC for 2 sec

P -> N 800 VAC for 2 sec

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
