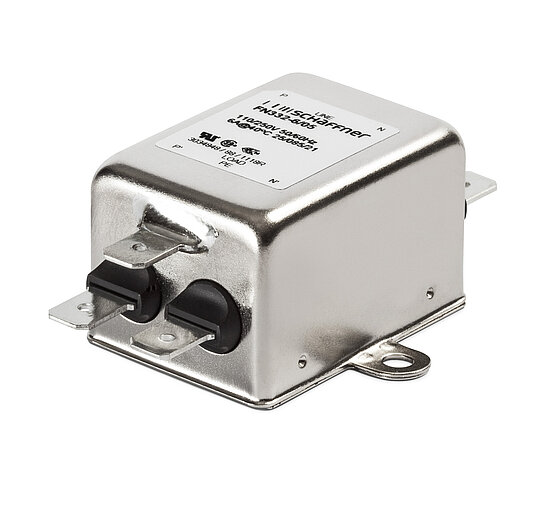

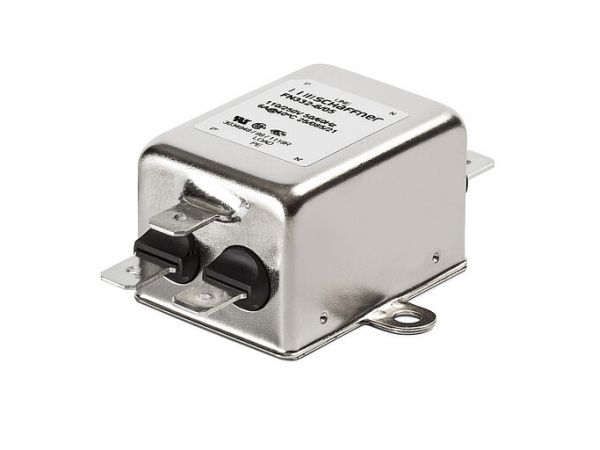

Standard Performance Single-Phase Filters FN332

Performance EMI Filter

• Rated currents from 1 to 10 A

• Compact housing

• Optional overvoltage protection (Z type)

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Operating frequency

DC to 400 Hz

Rated currents

1 to 10 A @ 40°C max

High potential test voltage

P –> PE 2000 VAC for 2 sec

P –> N 760 VAC for 2 sec

P –> N 250 VAC for 2 sec (Z types)

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Surge pulse protection (Z type)

2 kV, IEC 61000-4-5
