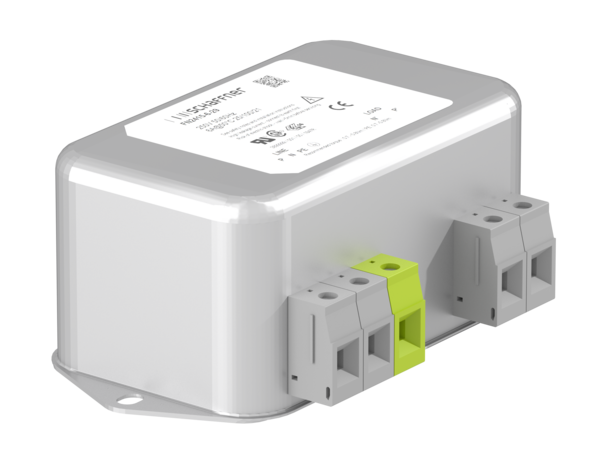

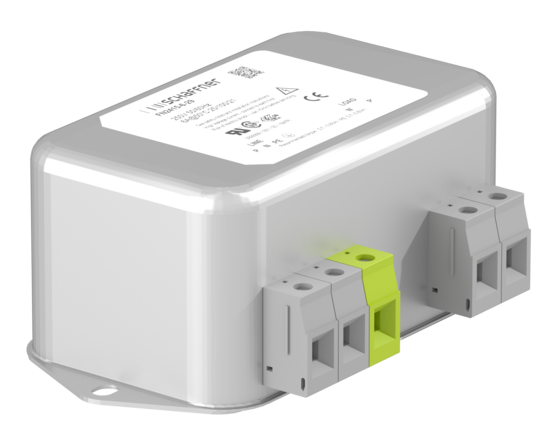

High Performance Single-Phase Filters FN2415

Single-phase EMC Filter for Control Equipment

• Filter for the control line of complex equipment and machinery

• To ensure interference-free operation of control equipment (PLC, Motion-, Robot Control etc.)

• To improve operational reliability and system stability

• Compact EMC filter design with minimum space requirement

Maximum continuous operating voltage

250 VAC

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-2 or better

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Operating frequency

DC to 400 Hz

Rated currents

6 to 16 A @ 50°C

High potential test voltage

P/N –> E 2250VDC for 2 sec

P –> N 1100VDC for 2 sec

Protection category

IP 20
